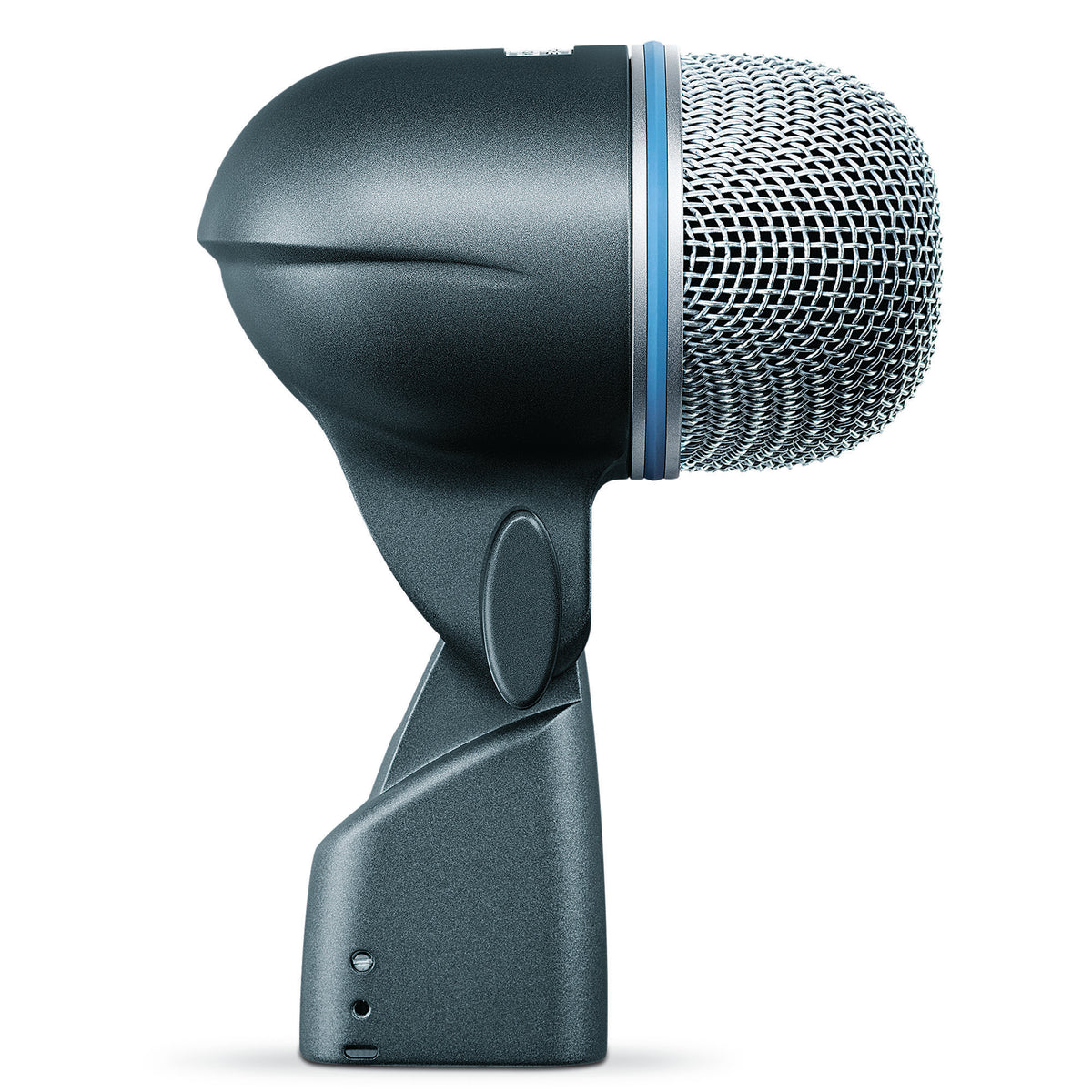

Description
Highlights
- Tailored frequency response for kick drums and bass instruments
- Built-in dynamic locking stand adapter with XLR connector for easy setup
- Studio-quality performance at high sound pressure levels
- Supercardioid pattern for high gain before feedback and rejection of unwanted noise
- Hardened steel mesh grille resists wear and abuse
- Advanced pneumatic shock mount system minimizes mechanical noise and vibration
- Neodymium magnet for high signal-to-noise ratio output
- Low sensitivity to varying load impedance
- Legendary Shure quality and reliability
Specifications
Cartridge Type | Dynamic (moving coil) |
Frequency Response | 20 to 10,000 Hz |
Polar Pattern | Supercardioid |
Output Impedance | 150 Ω |
Sensitivity (at 1kHz, open circuit voltage) | −64 dBV/Pa (0.6 mV) 1 Pascal=94 dB SPL |
Maximum SPL (1 kHz at 1% THD, 1kΩ load) | 174 dB |
Polarity | Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 |
Weight | Net: 0.605 kg (1.35 lbs) |
Connector | Three-pin professional audio (XLR), male |
Case | 134 dB (159 dB, -25 Pad) |
Replacement Parts | RK321 Replacement grille R175 Replacement cartridge |
